Liquid-Cooled DC · NSNM0800LC / NSNM1600LC / NSNM3200LC

Charge faster.
Go further.

Neutron liquid-cooled megawatt charging terminals deliver 800 kW to 3.2 MW per dispenser. Five minutes of charge adds over 300 km of range: a charging speed that approaches petrol refuelling. CCS2 and MCS-ready for motorway services, fleet depots, and high-throughput hubs.

3.2MW

Peak Output

300km

Per 5 min charge

≈Petrol

Charging speed

Talk to an Engineer View Industrial

Neutron Systems / Fleet DC / Megawatt Charging

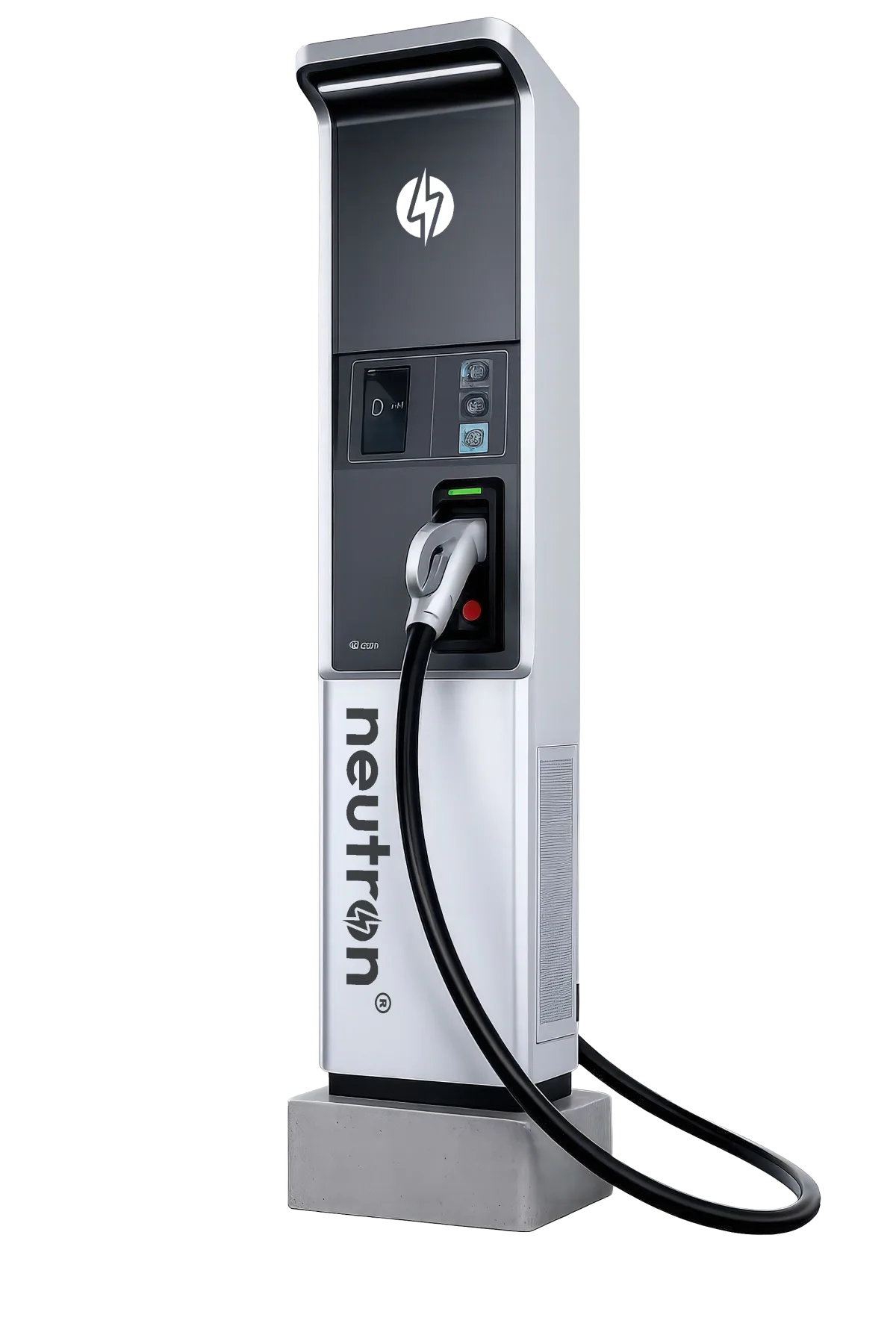

NSNM0800LC: Single Dispenser

800 kW single gun.
5 min. 300 km.

Neutron's liquid-cooled megawatt charging terminal delivers up to 800 kW through a single CCS2 connector with 1,000 A peak current. Five minutes of charge adds over 300 km of range: a charging speed that approaches petrol refuelling. Liquid-cooled cabling keeps the physical dispenser compact despite the extreme power levels, with ≥ 96% efficiency across the full output range.

Electrical

Group Output Power	Up to 800 kW
Single Connector Output	Up to 800 kW
Peak Output Current	1000 A
Output Voltage	200–1000 V DC
Cable Cooling	Liquid-cooled, integrated
Efficiency	≥ 96%

Connectivity

OCPP	2.0.1
Protocols	ISO 15118-2 (PnC), DIN 70121
Authentication	RFID, App, Plug & Charge
Network	Ethernet, 4G LTE, Wi-Fi
CMS Integration	Electron CMS

Physical

Configuration	Master Unit + Control Cabinet
Display	15.6" colour touchscreen
Protection Rating	IP54 / IK10
Operating Temperature	-30°C to +55°C
Efficiency	≥ 96%
Certifications	CE, UKCA

CCS2 MCS Ready Liquid-Cooled OCPP 2.0.1 Plug & Charge ISO 15118

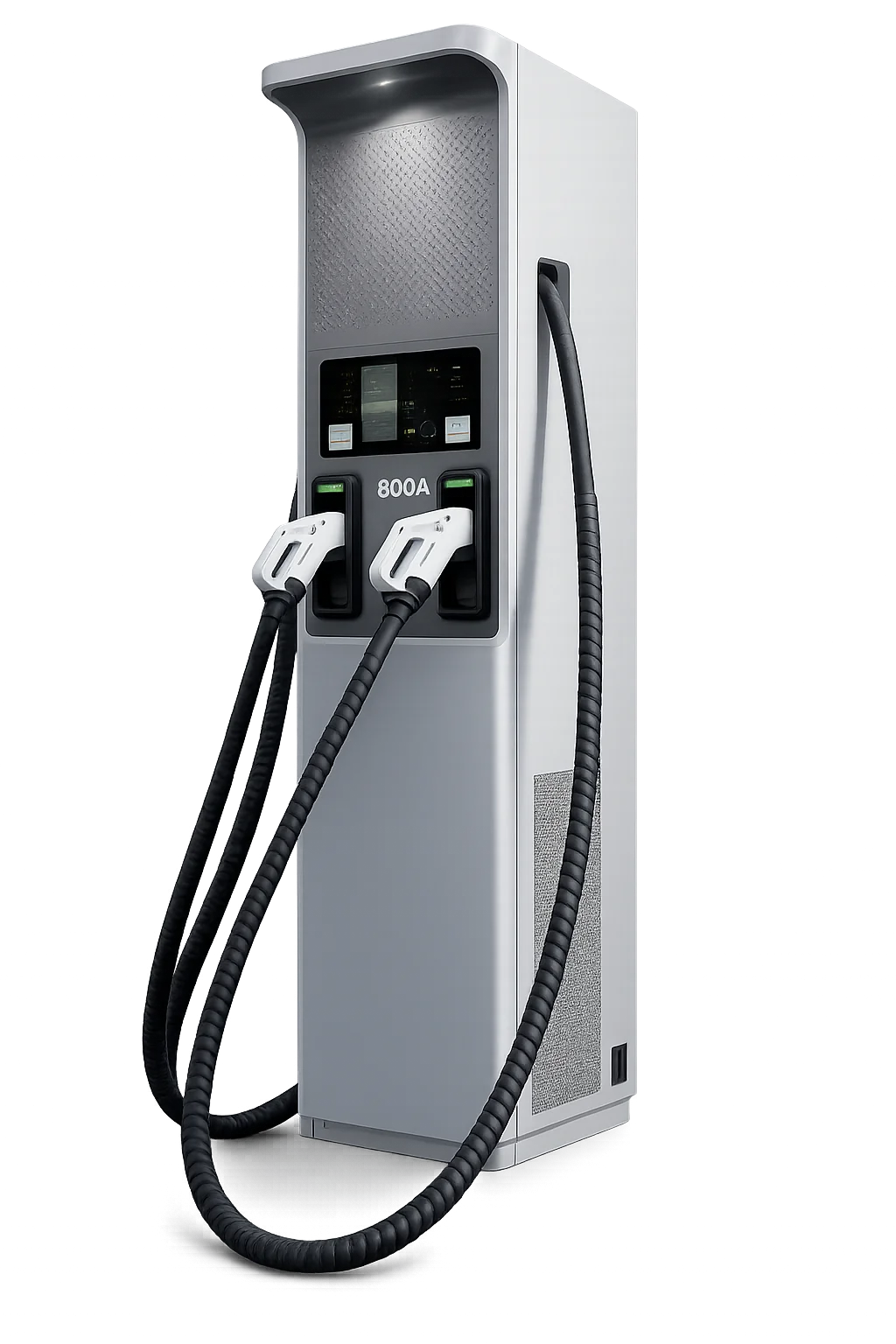

Neutron NSNM1600LC 1.6 MW dual-gun liquid-cooled megawatt charging terminal

NSNM1600LC: Dual Dispenser

1.6 MW dual gun.
Two vehicles. Simultaneously.

Two liquid-cooled CCS2 connectors on a single dispenser, each independently capable of 800 kW at 800 A. Total group output reaches 1.6 MW. Both vehicles charge in parallel, each adding 300+ km of range in five minutes. Built for motorway services, fleet depots, and port operations where throughput is measured in vehicles per hour.

Electrical

Group Output Power	Up to 1,600 kW (1.6 MW)
Per-Connector Output	Up to 800 kW
Peak Output Current	800 A per connector
Output Voltage	200–1,000 V DC
Cable Cooling	Dual liquid-cooled, integrated
Connectors	2 × CCS2
Efficiency	≥ 96%

Connectivity

OCPP	2.0.1
Protocols	ISO 15118-2 (PnC), DIN 70121
Authentication	RFID, App, Plug & Charge
Network	Ethernet, 4G LTE, Wi-Fi
CMS Integration	Electron CMS

Physical

Display	15.6" colour touchscreen
Protection Rating	IP54 / IK10
Operating Temperature	-30°C to +55°C
Certifications	CE, UKCA

Talk to an Engineer View Industrial

NSNM3200LC: Dual MCS Dispenser

3.2 MW dual MCS.
True megawatt charging.

Two liquid-cooled MCS connectors on a single dispenser, each independently capable of up to 1,600 kW at 1,600 A. Total group output reaches 3,200 kW: Neutron's highest-power terminal, for the heaviest-duty depot, hub, and marine charging applications. Built on the modular Orin power cabinet and Magus 720 kW master control architecture, with interchangeable Soren terminals: the same platform also configures down to natural-cooled or liquid-cooled CCS2 for standard fleet charging.

Electrical

Group Output Power	Up to 3,200 kW (3.2 MW)
Per-Connector Output	Up to 1,600 kW
Peak Output Current	1,600 A per connector (1,200 A rated)
Output Voltage	150–1,000 V DC
Cable Cooling	Dual liquid-cooled, integrated
Connectors	2 × MCS
Also Available As	Natural-cooled CCS2 (600 A max) or liquid-cooled CCS2 (800 A max), 2 × CCS2
Efficiency	≥ 96%

Connectivity

OCPP	1.6J (upgradeable to 2.0.1)
Communications	4G, Ethernet
Display	10.1" colour LCD screen
CMS Integration	Electron CMS

Physical

Configuration	Orin power cabinet + Magus 720 kW master control cabinet
Protection Rating	IP55 / IK10 (screen IK08)
Operating Temperature	-30°C to +55°C
RCD	Type A
Certifications	CE, UKCA

MCS CCS2 Liquid-Cooled Modular Platform OCPP 1.6J

Fleet Charging System

Pair megawatt and fast charging.
One system, any vehicle.

Mix NSNM megawatt terminals with Neutron Satellite DC fast chargers to serve mixed fleets from a single depot. The Electron CMS automatically dispatches each vehicle to the right charger: matching power level to vehicle capability, maximising throughput, and reducing wasted capacity.

NSNM megawatt terminals for heavy commercial vehicles and long-range EVs
Satellite DC fast chargers for standard fleet and passenger vehicles
Intelligent auto-dispatch: right charger, right vehicle, automatically
Dynamic power sharing eliminates stranded capacity and reduces losses

Intelligent Power Management

Intelligent scheduling.
Seamless scale.

Choosing a charging system means choosing for the future. Neutron's intelligent power dispatch allocates capacity dynamically across dispensers, automatically matching output to vehicle demand in real time. As your fleet and vehicle mix evolve, the system scales with it: smooth capacity expansion, no stranded infrastructure, with software iteration supported over the full hardware lifetime.

Real-time power allocation across all connected dispensers
Add megawatt dispensers as demand grows: no core infrastructure change
BESS integration: smooth demand peaks, reduce grid import costs
OTA software updates: system improves continuously post-installation
