Fleet DC Charging · NSNF0010DC

DC Satellite
Terminal

Up to 300 kW dual-gun terminal (1000 V; up to 240 kW at 800 V). Connects to a centralised master unit via DC bus, sharing power intelligently between all bays in the depot.

300kW
Per connector
2×
CCS2 guns
IP54
Ingress protection
Talk to an Engineer View All Fleet
Neutron Systems  /  Fleet DC  /  DC Terminals
NSNF0010DC: Satellite Terminal

Full Specifications

Electrical
Maximum Output PowerUp to 300 kW per connector (1000 V) · up to 240 kW (800 V)
Per-Gun MaximumUp to 300 kW (1000 V) · up to 240 kW (800 V), single vehicle
Output Voltage Range200 – 1000 V DC
Maximum Output Current300 A per gun
Power SupplyVia DC bus from master unit
Efficiency≥ 96% (system)
Power Factor≥ 0.99 (at master unit)
Connectors & Charging
Connector Type1 × CCS2 (Combo 2)
Cable Length5 m (standard)
Protocols SupportedISO 15118-2 (PnC), DIN 70121, IEC 61851-1
Plug-and-ChargeYes (ISO 15118-2)
Dynamic Load SharingYes: automatic per master unit
Communications
OCPP VersionOCPP 1.6J / OCPP 2.0
Network InterfaceEthernet RJ45, 4G LTE (optional)
AuthenticationRFID ISO 14443 Type A/B, NFC
PaymentContactless card reader (optional)
Physical
Dimensions (H × W × D)363 × 363 × 1518 mm
Weight~85 kg
Enclosure RatingIP54
Impact ProtectionIK10
Operating Temperature-30°C to +55°C
Humidity5% – 95% non-condensing
Altitude≤ 2,000 m
CoolingForced air (internal fan)
Display & UI
Display7" colour touchscreen
Status IndicatorsLED charging status strips
LanguagesMulti-language UI
Safety & Compliance
StandardsIEC 61851-1, IEC 61851-23, IEC 62196-3
CertificationsCE, UKCA
Earth Fault DetectionYes
Residual Current6 mA DC RCD integrated
Over-voltage / Under-voltageProtected
Over-temperatureAuto thermal cutback
Emergency StopPhysical E-stop button
Cable ManagementIntegrated cable holster

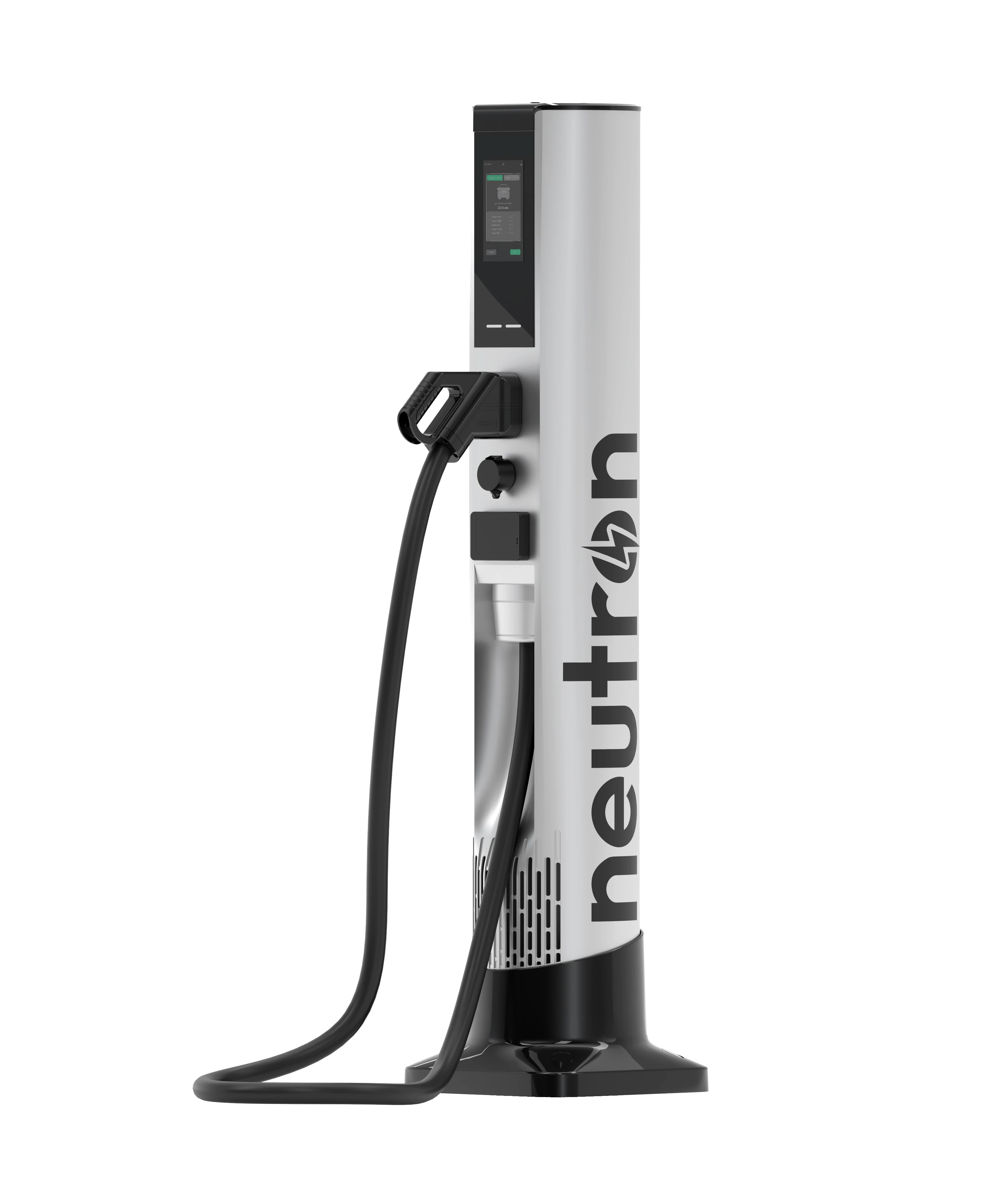

NSNF0010DC DC Satellite Terminal
Compatible With
Master Unit
NSNF0020MU240LCD
240 kW
Master Unit
NSNF0021MU480LCD
480 kW
Connector Options
Overhead
NSNF0014DDC
Drop-Down Connector
In-Ground
NSNF0015GRC
Ground Retractable
Talk to an Engineer Download Datasheet
NSNF0011SC: DC Satellite Terminal

Double gun.
Shared power.

Dual-gun satellite dispenser connected to a central Power Cabinet via shared DC bus. Dynamically redistributes up to 480 kW across both CCS2 connectors, maximising throughput at every bay.

Output PowerUp to 300 kW per connector (1000 V) · up to 240 kW (800 V)
Output Voltage50–1000 V DC
Max Output CurrentUp to 300 A per gun
Connectors2 × CCS2, 5 m cable
Display7" LCD touchscreen
AuthenticationRFID · App · Screen · POS (optional)
OCPP1.6J
Dimensions363 × 363 × 1518 mm
ProtectionIP54 / IK10
Operating Temperature-30°C to +50°C
Operating Altitude≤ 2000 m
CertificationsCE · CB · TÜV · RoHS · UKCA
Talk to an Engineer Full Specifications

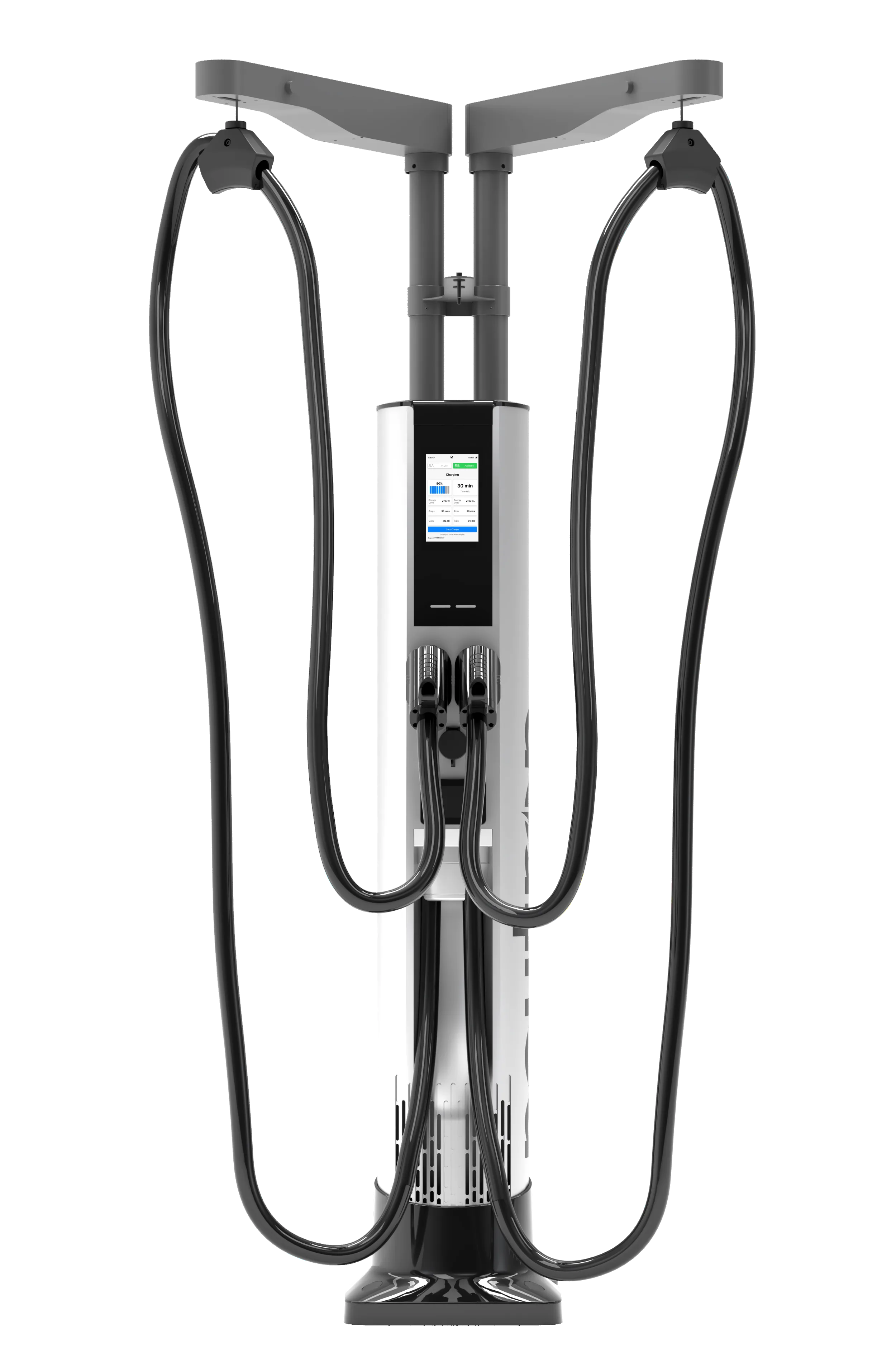

NSNF0011SC DC Satellite Terminal

Build your fleet charging system.

Our team will design the optimal configuration for your depot.

View Master Units Back to Fleet
