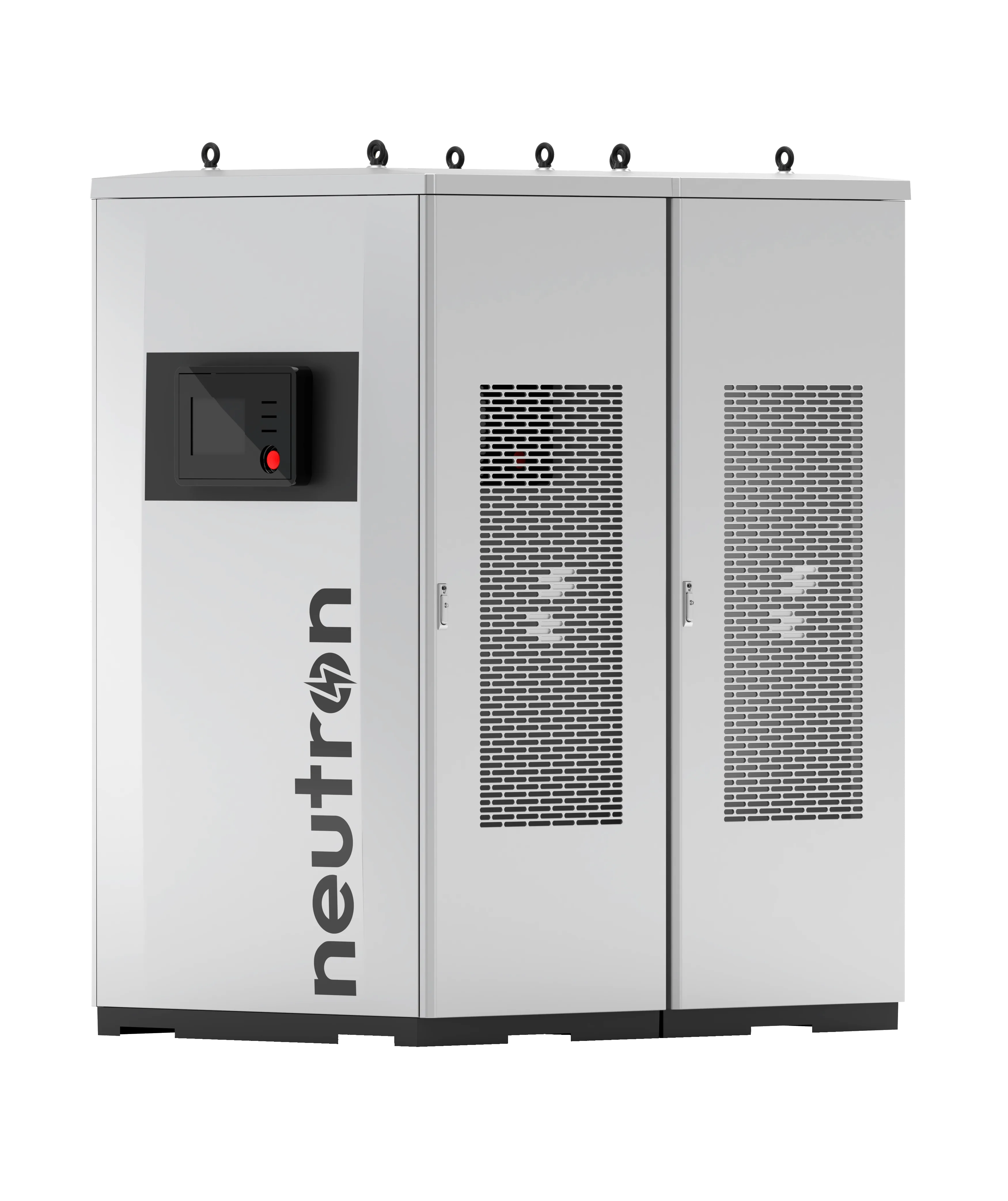

NSNF0021MU480LCD
480 kW
High-Power Master

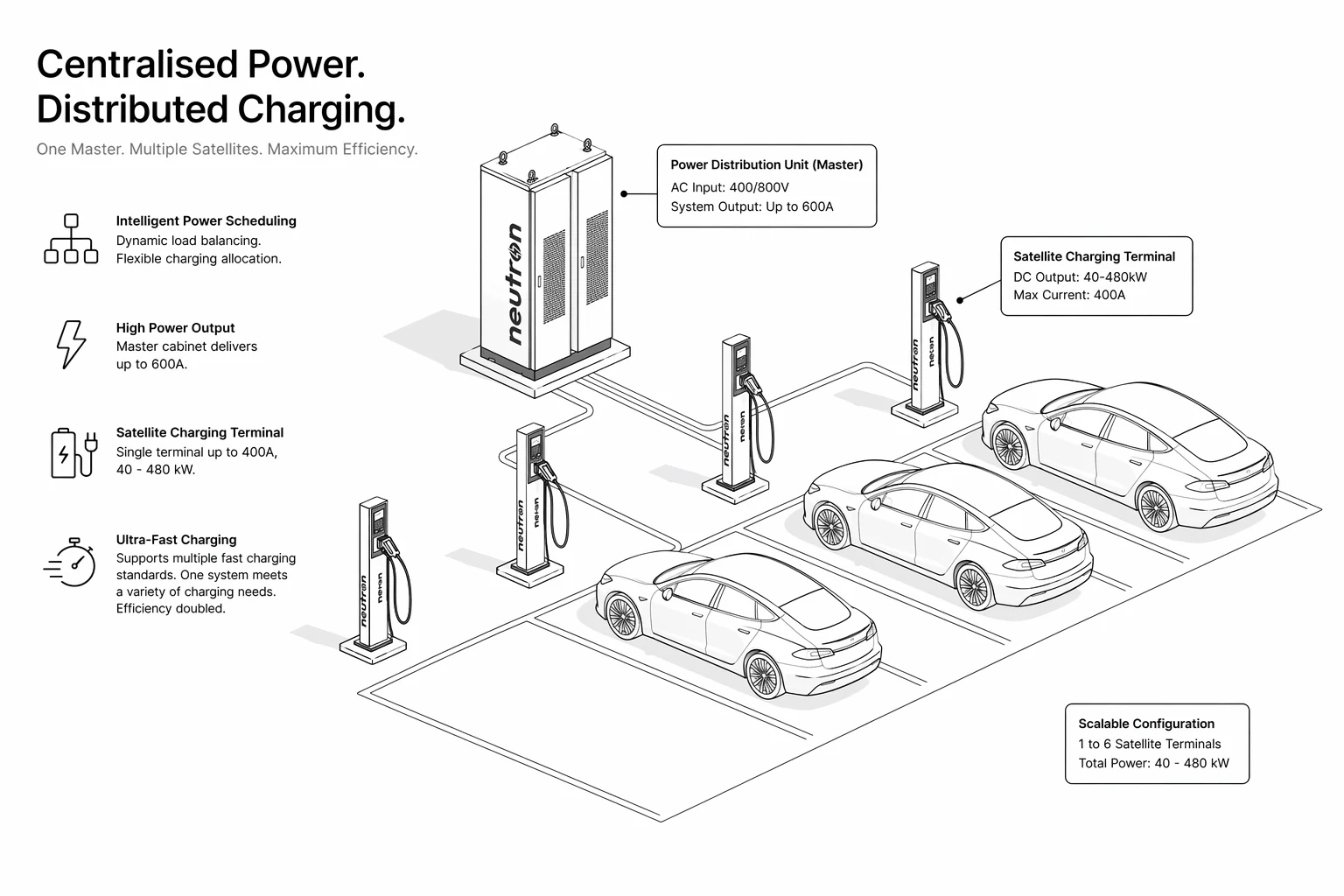

The 480 kW master is engineered for high-throughput fleet depots: bus operators, logistics hubs, and rapid-turnaround commercial fleets. Supports up to 6 satellite terminals with intelligent priority dispatch.
480kW
DC output
6×
Terminals
≥96%
Efficiency
AC Input
| AC Input Voltage | 400 V AC ±15%, 3-phase |
|---|---|
| Frequency | 50 / 60 Hz |
| Input Current | Max 760 A |
| Power Factor | ≥ 0.99 |
| THDi | ≤ 5% |
DC Output
| Rated DC Output Power | 480 kW |
|---|---|
| DC Output Voltage | 200 – 1000 V DC |
| Efficiency (peak) | ≥ 96% |
| Ripple | ≤ 1% Vpp |
System Integration
| Max Satellite Terminals | Up to 12 |
|---|---|
| Load Sharing | Dynamic: priority charging configurable per terminal |
| Communication Bus | CAN 2.0, RS485, Ethernet |
| Grid Demand Management | Compatible with Neutron Grid EMS |
| Peak Shaving | Yes (with ESS integration) |
Physical & Environmental
| Enclosure Rating | IP54 |
|---|---|
| Operating Temperature | -30°C to +55°C |
| Cooling | Forced air with active thermal management |
| Display | Integrated LCD status panel |
| Noise Level | ≤ 70 dB(A) at 1 m |
| Certifications | CE, UKCA |
