Commercial DC · Integrated Series

160 to 400 kW.
All-in-one.

No external power cabinet. No additional infrastructure. The integrated DC series puts everything in a single weatherproof enclosure, certified for UK and EU markets.

Power levels

2×

CCS2 simultaneous

≥96%

Efficiency

Select Power Level

Choose your capacity.

All models share the same industrial design and software platform. Only the power module differs.

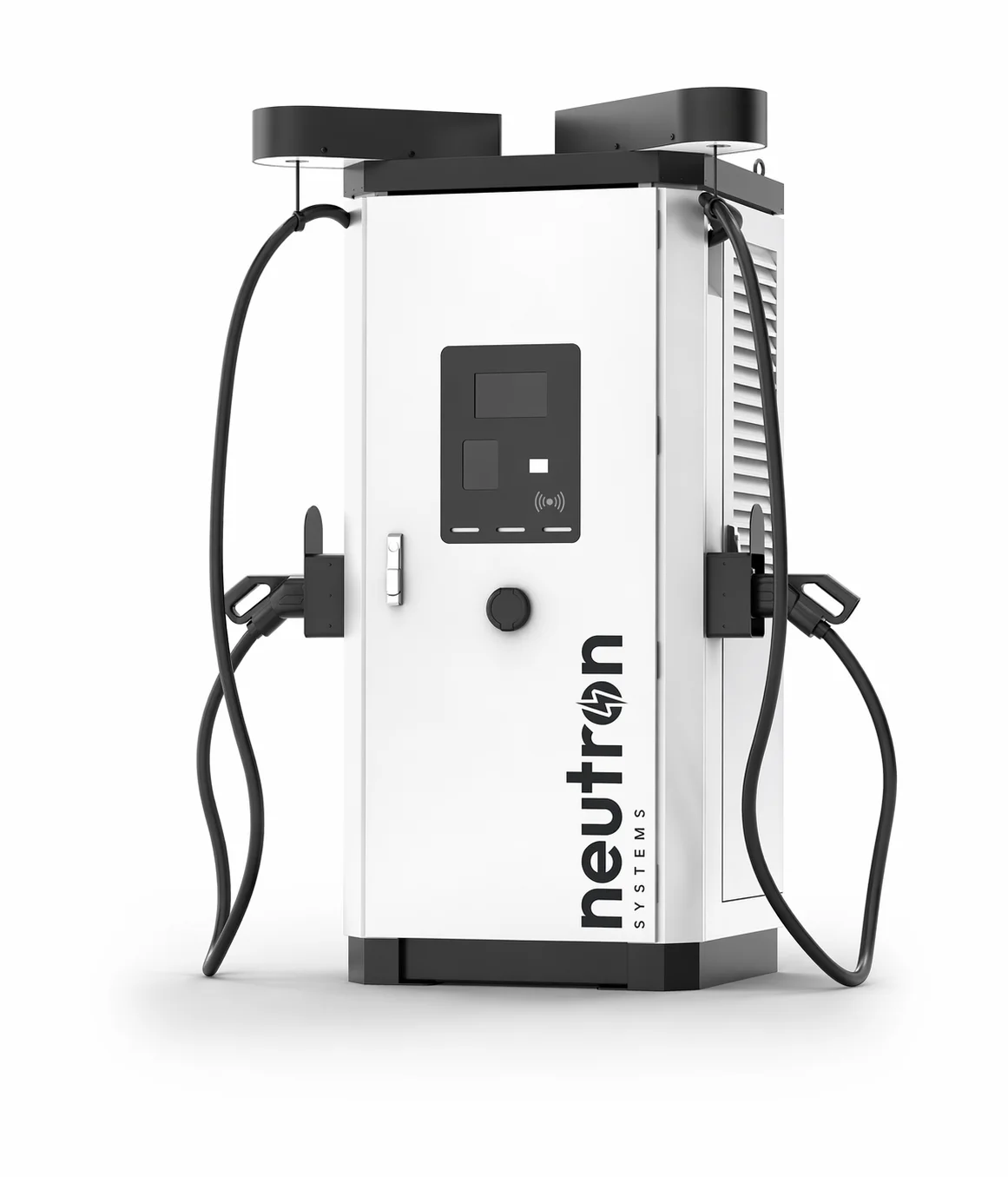

Common Features

Built into every model.

Dual CCS2 guns with simultaneous charging
ISO 15118-2 Plug & Charge (PnC)
10.1" full-colour touchscreen display
RFID, NFC and App authentication
Contactless card payment terminal
OCPP 1.6J and OCPP 2.0 support
4G LTE + Ethernet connectivity
IP54 weatherproof / IK10 vandal-resistant
-30°C to +55°C operating range
CE and UKCA certified
Neutron Electron CMS compatible

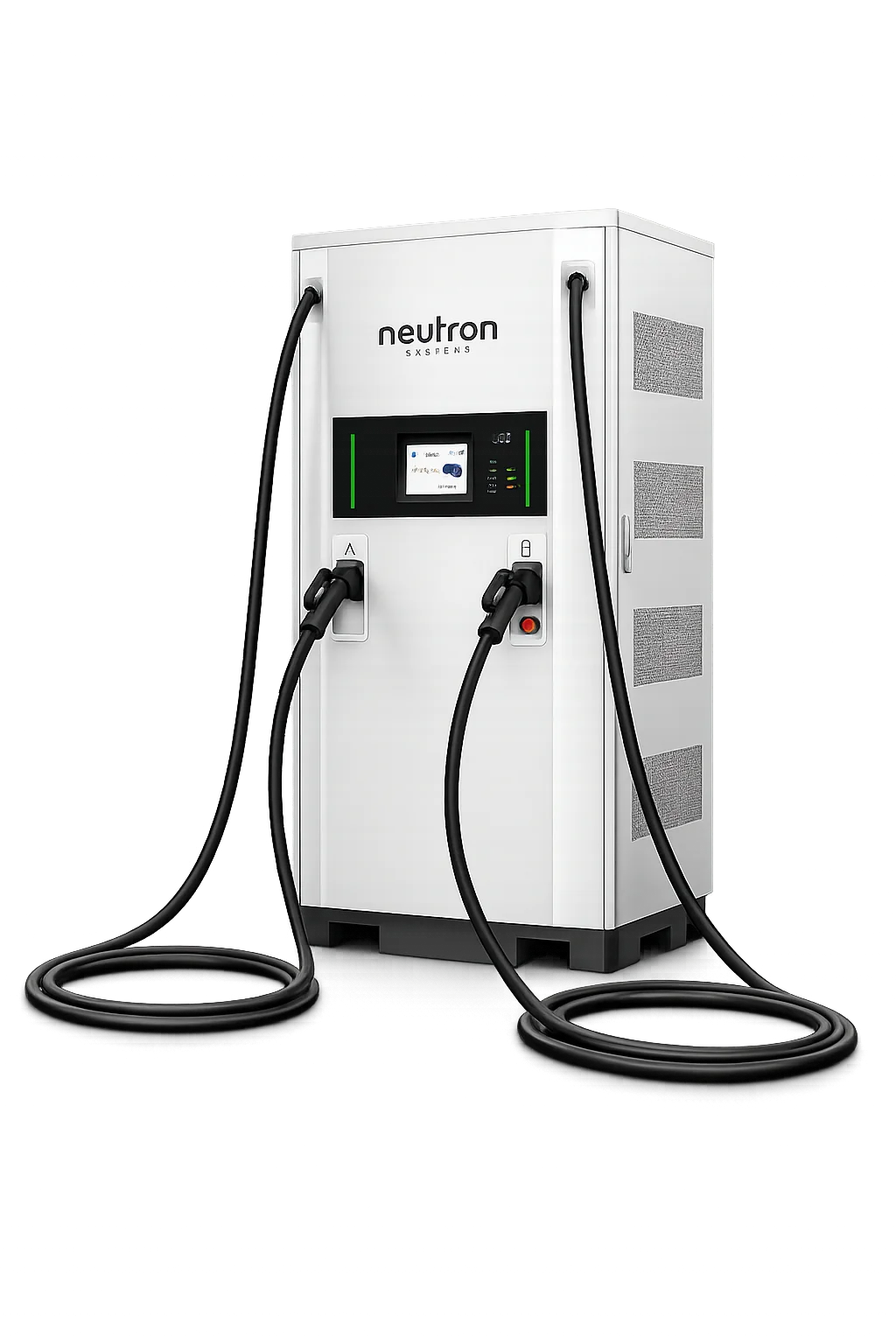

NSNF0030

180kW

Compact rapid DC for lower-power sites. Ideal for hotel forecourts, retail car parks, and workplace destinations where 180 kW satisfies the majority of dwell-time charging sessions.

Rated Output Power	180 kW
AC Input	3-phase 400 V, max 280 A
DC Output Voltage	200 – 1000 V DC
Max Output Current	2 × 200 A
Efficiency	≥ 96%
Power Factor	≥ 0.99
Dimensions (H×W×D)	1,800 × 600 × 400 mm
Weight	~280 kg
Noise	≤ 60 dB(A) at 1 m

Talk to an Engineer

NSNF0031

240kW

The sweet spot for motorway service areas and destination charging. 240 kW delivers a meaningful top-up for most passenger EVs in under 20 minutes.

Rated Output Power	240 kW
AC Input	3-phase 400 V, max 360 A
DC Output Voltage	200 – 1000 V DC
Max Output Current	Up to 300 A (shared)
Efficiency	≥ 96%
Power Factor	≥ 0.99
Dimensions (H×W×D)	1,800 × 700 × 400 mm
Weight	~320 kg
Noise	≤ 62 dB(A) at 1 m

Talk to an Engineer

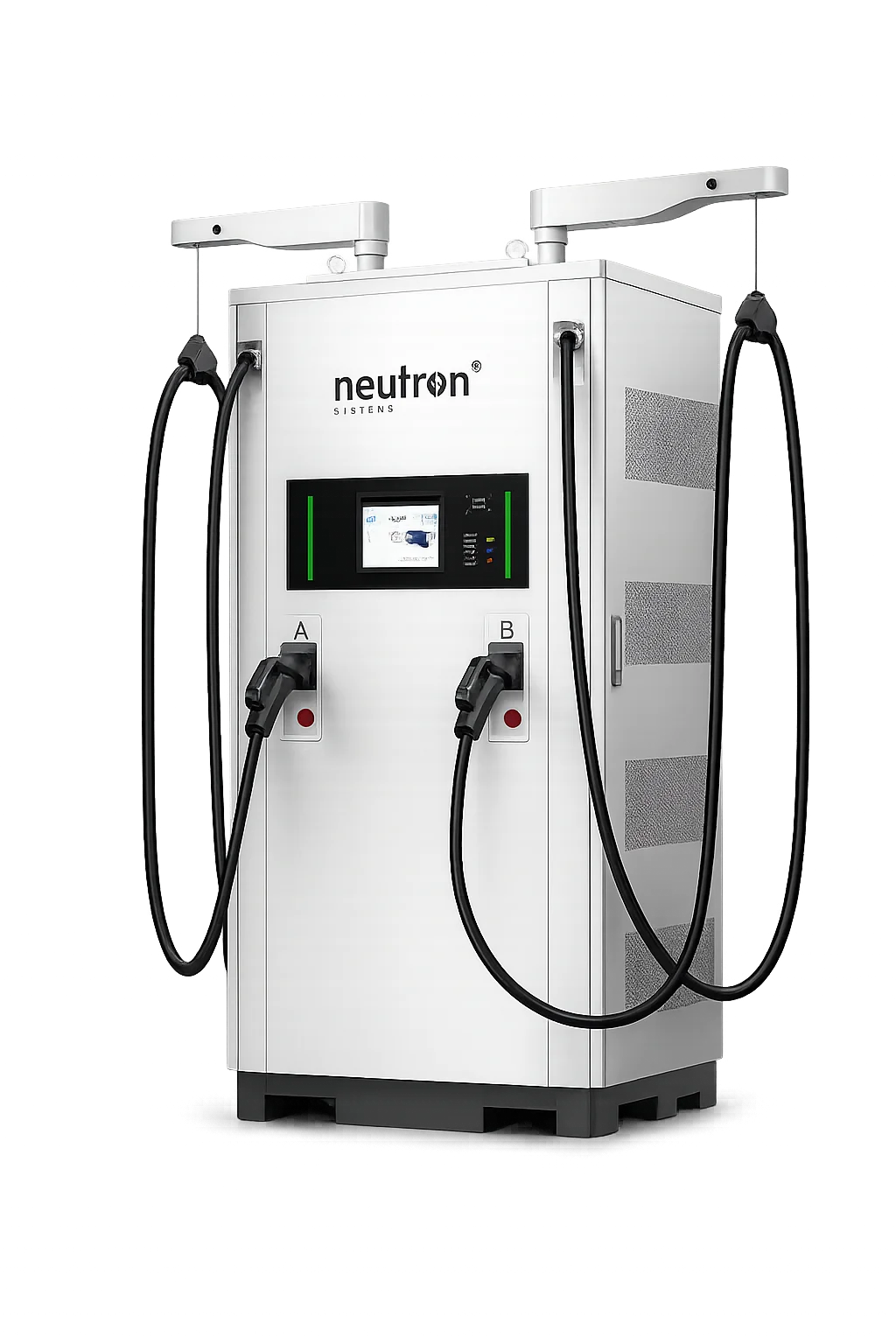

NSNF0032

160kW

High-power destination rapid charging for premium locations. At 160 kW, even high-capacity EVs receive a substantial charge within a single dwell-time window.

Rated Output Power	160 kW
AC Input	3-phase 400 V, max 250 A
DC Output Voltage	200 – 1000 V DC
Rated Output Current	2 × 200 A
Max Output Current	2 × 400 A
Efficiency	≥ 96%
Power Factor	≥ 0.99
Dimensions (H×W×D)	1,800 × 800 × 450 mm
Weight	~380 kg
Noise	≤ 65 dB(A) at 1 m

Talk to an Engineer

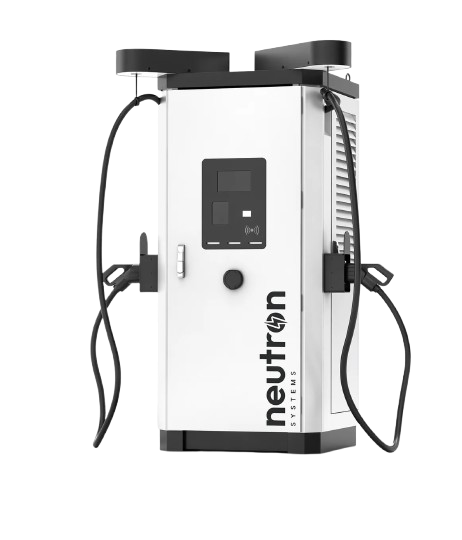

NSNF0033

400kW

Ultra-rapid. The flagship commercial integrated unit: 400 kW rated output with Boost mode up to 600 A and 40 kW-granularity dynamic power scheduling across connectors. Charges an 800V architecture EV from 10% to 80% in under 18 minutes. Future-proof for the next generation of electric vehicles.

Rated Output Power	400 kW
AC Input	3-phase 400 V AC ±15%, max 610 A
DC Output Voltage	150 – 1,000 V DC
Rated Output Current	380 A (400 A optional)
Boost Mode Current	Up to 600 A
Connectors	2 × CCS2
Cable Management	Optional
Efficiency	≥ 96%
Power Factor	≥ 0.99
Display	15.6" LCD screen (21.5" optional)
Communications	4G, Ethernet
Platform Protocol	OCPP 1.6J (upgradeable to 2.0.1)
RCD	Type A
Operating Temperature	-30°C to +55°C
IP Rating	IP55
IK Rating	IK10 (screen IK08)
Dimensions (H×W×D)	1,850 × 900 × 500 mm
Weight	~430 kg
Noise	≤ 68 dB(A) at 1 m

Talk to an Engineer

Compare All Models

Side by side.

Specification	NSNF0032 (160kW)	NSNF0030 (180kW)	NSNF0031 (240kW)	NSNF0033 (400kW)
Rated Output	160 kW	180 kW	240 kW	400 kW
AC Input Current	250 A	280 A	360 A	610 A
Max Output Current	2 × 200 A (400 A max)	2 × 200 A	Up to 300 A (shared)	380 A (600 A boost)
DC Voltage Range	200 – 1000 V DC
Connectors	2 × CCS2
Efficiency	≥ 96%
Weight (approx.)	~380 kg	~280 kg	~320 kg	~430 kg
OCPP	1.6J / 2.0
Plug & Charge	Yes (ISO 15118-2)
Certifications	CE, UKCA
